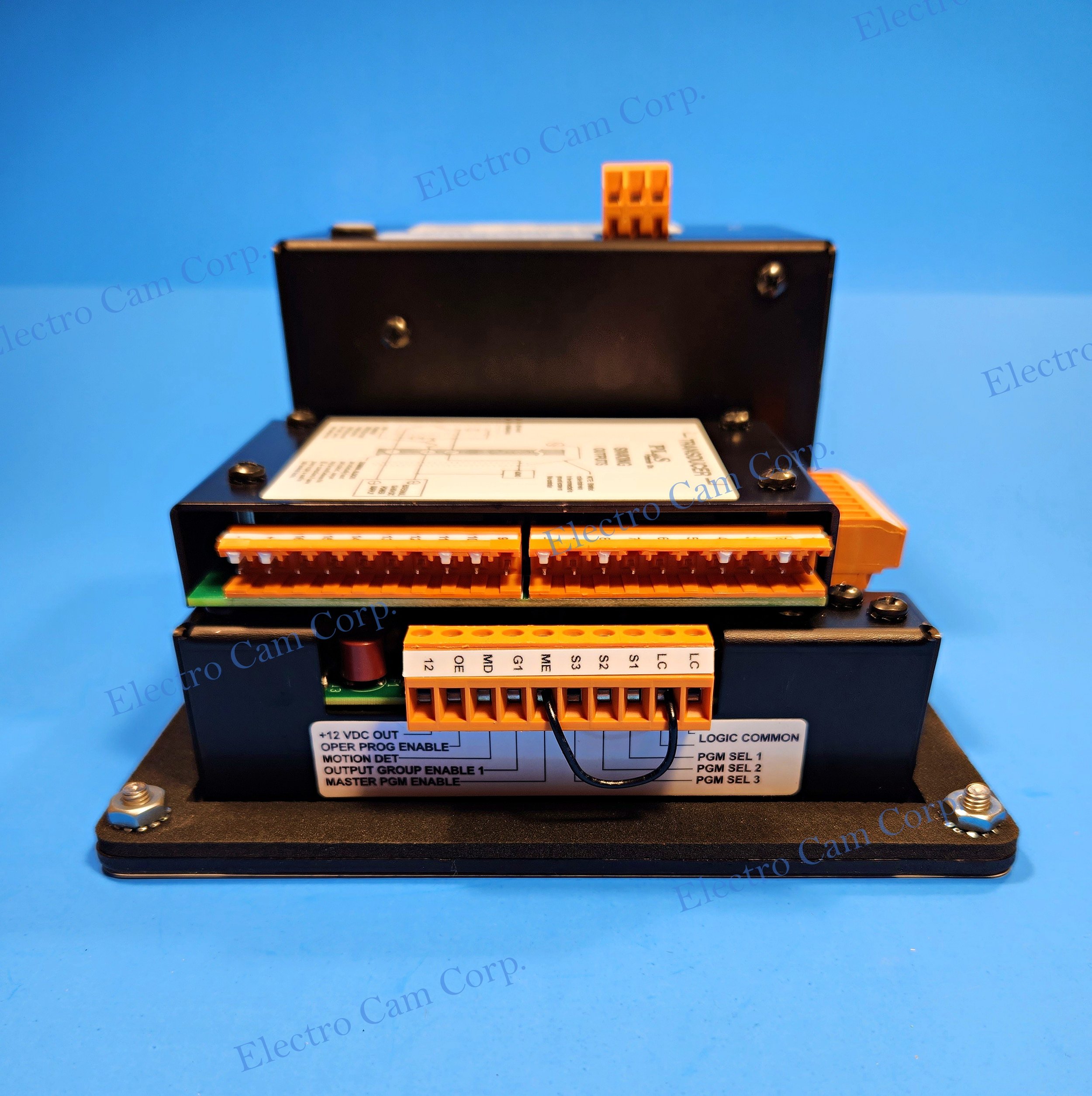

Sinking, Resolver Based

120 VAC Input

8.5 x 6.5” LED Display

DC Transistor Outputs Only (1 Input)

Standard Features

DC Sinking Output

16 DC Outputs

Available Options:

D - Output Directional ANDing ($100.00)

F - Additional Setpoint/Program Storage ($300.00)

G - Gray Code Position Output (8-Bit) ($100.00)

H - 12-Bit Resolution ($350.00)

L - Leading & Trailing Edge Speed Compensation ($150.00)

P - Register Mark Phasing (eliminates external PGM SEL capability) ($100.00)

V - Vibration Protective Coating ($50.00)

W - Washdown Boot ($105.00)

*If combining options please call the factory, 815-389-2620
